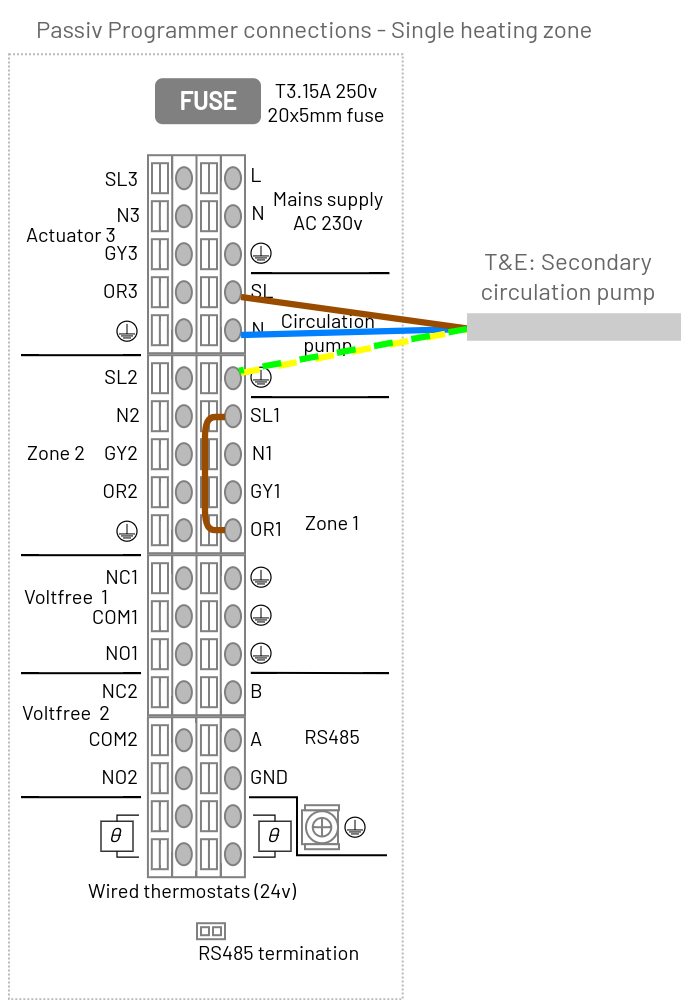

The circulation pump connections within the Passiv Programmer may be used without valve connections by adding the following connection between Zone 1: SL1 and OR1.
SL1 becomes live when the system is trying to perform space heating. OR1 will then power the circulation pump SL connection. See the Programmer wiring for more details.
