Grant RS485 connections and immersion connections

RS485 connections

The Grant R32 heat pump has factory fitted RS485 communication capability.

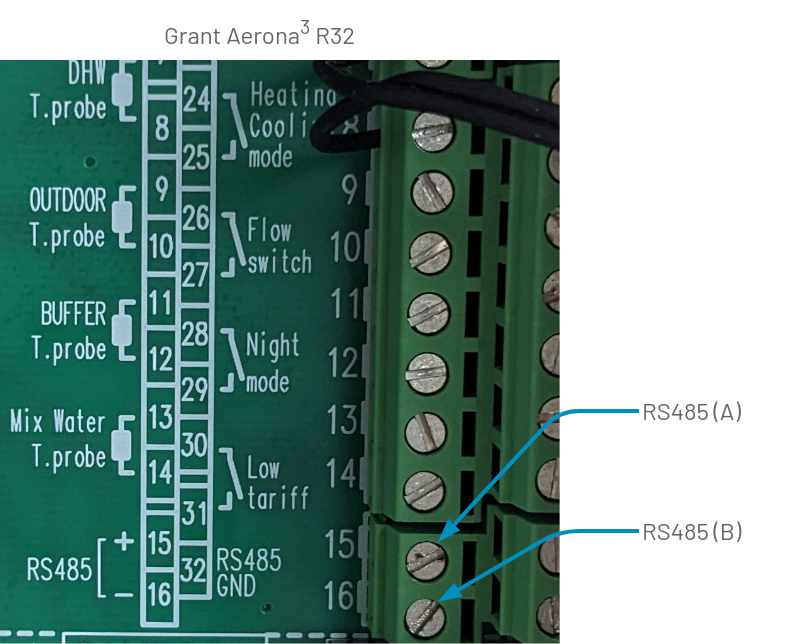

In the Grant outdoor unit make the following RS485 Modbus connections:

Tables can't be imported directly. Please insert an image of your table which can be found here.

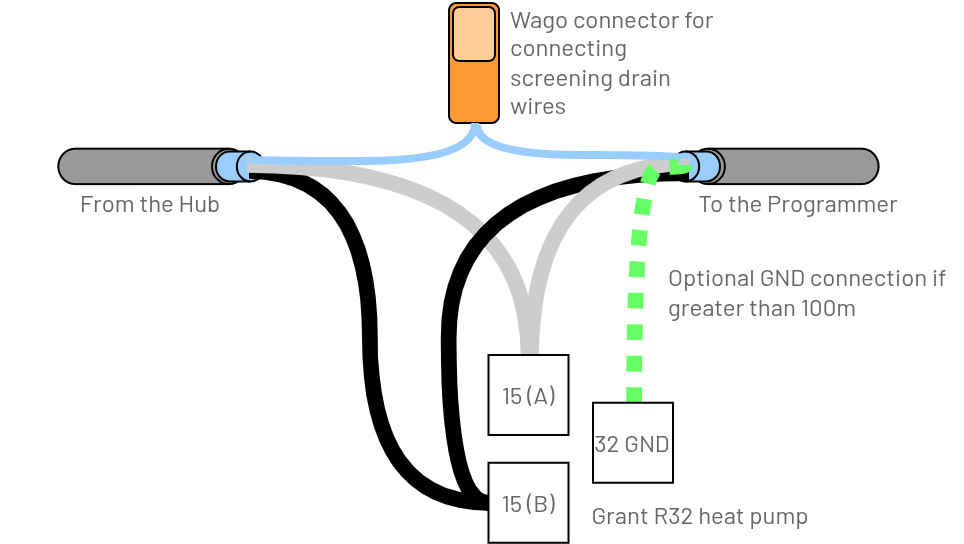

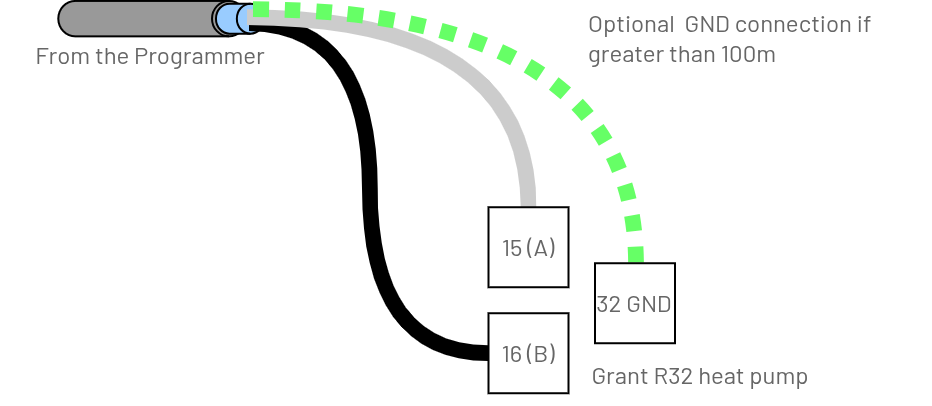

Grant R32 in the middle of the RS485 cable runGrant R32 at the end of the RS485 cable run

Guidance

  • Connect both screened drain wires together, insulate and carefully locate it at the edge of the PCB to reduce the chance of a short-circuit. Do NOT use the Grant RS485 GND connection for this purpose

  • RS485 termination within the Passiv Programmer (see the Installation guide page 9)



Guidance

  • Do NOT use the RS485 termination within the Passiv Programmer (see the Installation guide page 9)





Immersion connections

For Passiv Smart Thermostat to control the anti-legionella cycle it is necessary to connect the immersion element via a suitably rated contactor. The contractor is energised by the Grant heat pump using mains rated cabling.

DO NOT connect the immersion element directly to these heat pump terminals.

Please refer to the Grant installation guide and the first fix wiring diagram for further information.
