To enable the Passiv Smart Thermostat to control Daikin heat pumps, it requires a DCOM-LT/MB communication module, which shares power and communication connections with the Daikin indoor display.

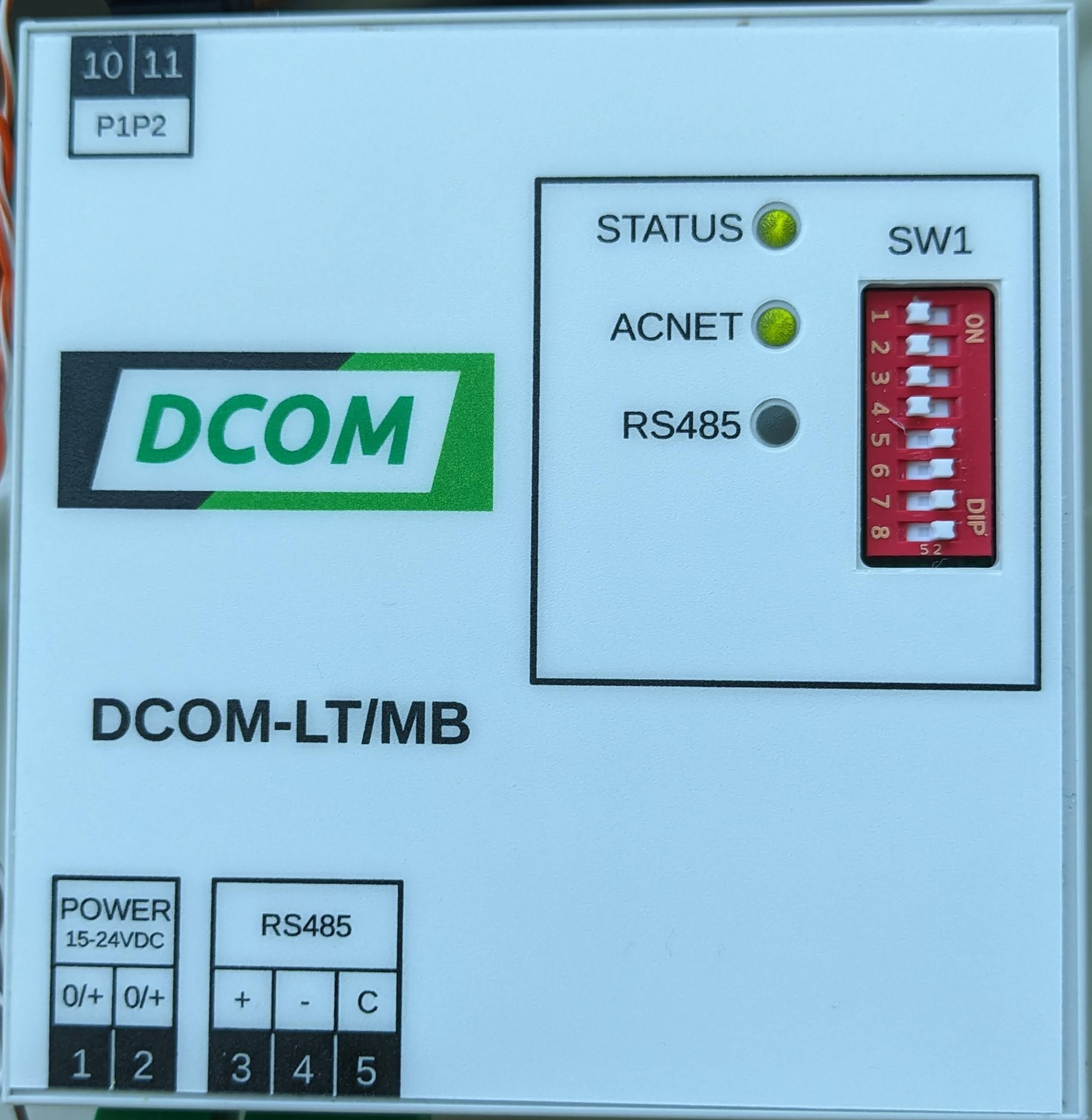

On the DCOM-LT/MB are a set of eight DIP switches which must be set correctly 1-4 OFF, 5-7 ON for the Passiv Smart Thermostat to communicate successfully with the heat pump.
Tables can't be imported directly. Please insert an image of your table which can be found here.

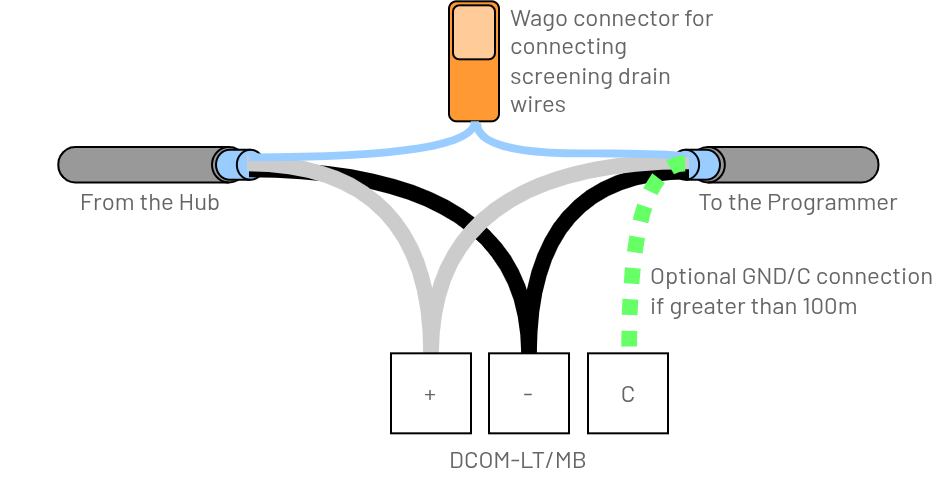

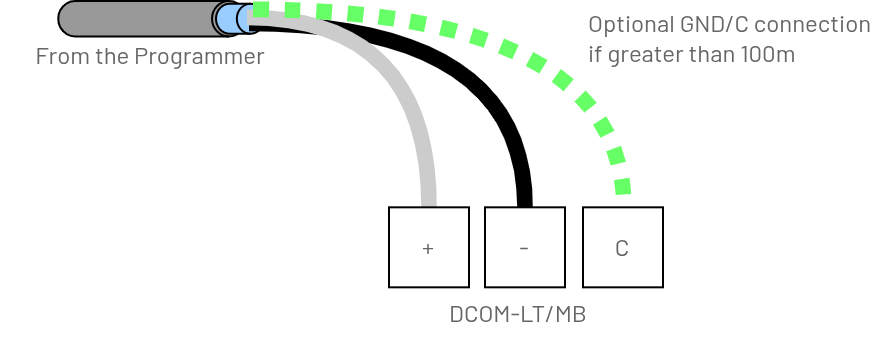

DCOM in the middle of the RS485 cable runDCOM at the end of the RS485 cable run
Guidance
- Connect both screened drain wires together, insulate and carefully locate it at the edge of the unit to reduce the chance of a short-circuit. Do NOT use the GND connection for this purpose
- RS485 termination within the Passiv Programmer (see the Installation guide page 9)
Guidance
- Do NOT use the RS485 termination within the Passiv Programmer (see the Installation guide page 9)
Connect the remaining DCOM-LT/MB power and P1/P2 connections to the Daikin indoor display and fit the DCOM-LT/MB in a suitable enclosure to avoid accidental tampering.
